商品詳情

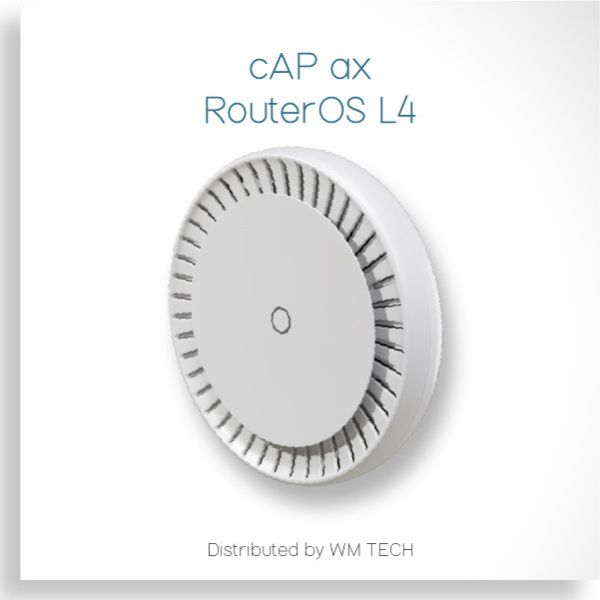

MikroTik cAP ax 是一款專為商業空間、大樓與教育單位設計的吸頂型 Wi-Fi 6 無線基地台，支援最新 802.11ax 標準，效能大幅升級。
搭載雙頻 AX1800 無線規格（2.4GHz / 5GHz），並配備強化的內建天線，可涵蓋中至大面積場域，提供高密度、多設備連線時仍能保持穩定速度的表現，特別適合會議室、辦公室、教室、餐廳等空間使用。

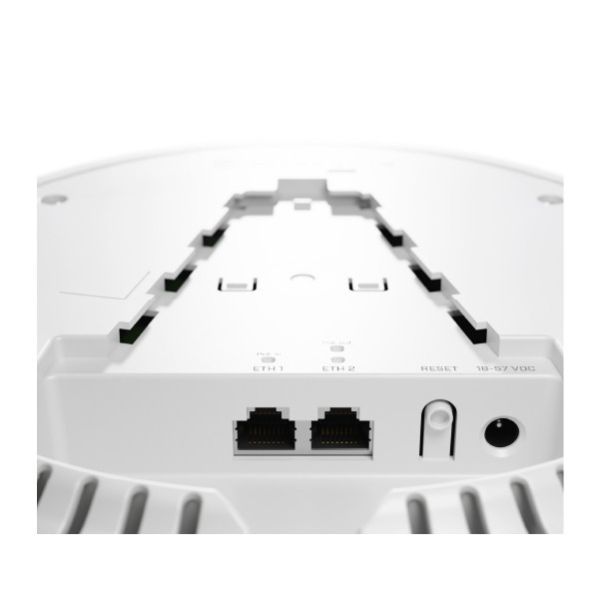

其機身為簡約圓形吸頂設計，可輕鬆安裝於天花板，融入各類裝潢風格。搭配 PoE（802.3af/at）供電與 Gigabit LAN 介面，減少額外電源需求，安裝更便利。
產品規格 (Specifications)
| Details | |
|---|---|
| Product code | cAPGi-5HaxD2HaxD |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 - 1800) MHz |
| Switch chip model | IPQ-6010 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
電源規格(Powering)
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 36 W |
| Max power consumption without attachments | 11 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
PoE供電(PoE-out)
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 400 mA |
| Max total out (A) | 600 mA |
| Total output current | 0.4 |
| Total output power | 19.2 |
網路介面(Ethernet)
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
無線功能(Wireless capabilities)
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX1800 |
無線規格(Wireless specifications)
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 23 | -100 |
| 11MBit/s | 23 | -94 |
| 6MBit/s | 24 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 17 | -67 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 24 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 17 | -67 |
其他(Other)
| CPU temperature monitor | Yes |
| Mode button | Yes |
原廠測試報告 (Performance Test Report)
| cAPGi-5HaxD2HaxD | IPQ-6010 2-port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162.5 | 1974 | 469.9 | 1924.8 | 1470.1 | 799.7 |
| Bridging | 25 bridge filter rules | 162.5 | 1974 | 380.1 | 1556.9 | 386.5 | 210.2 |
| Routing | none (fast path) | 162.5 | 1974 | 469.9 | 1924.8 | 1281.6 | 697.2 |
| Routing | 25 simple queues | 162.5 | 1973.1 | 391 | 1601.7 | 395.2 | 215 |
| Routing | 25 ip filter rules | 162.5 | 1973.1 | 266.7 | 1092.5 | 268.7 | 146.2 |
- 所有測試均使用Xena Networks專用測試設備（XenaBay）完成，並根據RFC2544（Xena2544）進行
- 最大吞吐量透過 30 秒以上的嘗試確定，封包大小為 64、512、1518 byte，封包遺失容限為 0.1%
- 測試結果顯示設備的最大性能，並使用上述硬體和軟體配置達到，不同的配置很可能會導致較低的結果
該設備已預先安裝並獲得許可的作業系統。無需單獨購買，產品即可使用。該設備在產品生命週期內或自購買之日起至少 5 年內提供免費軟體更新。
