商品詳情

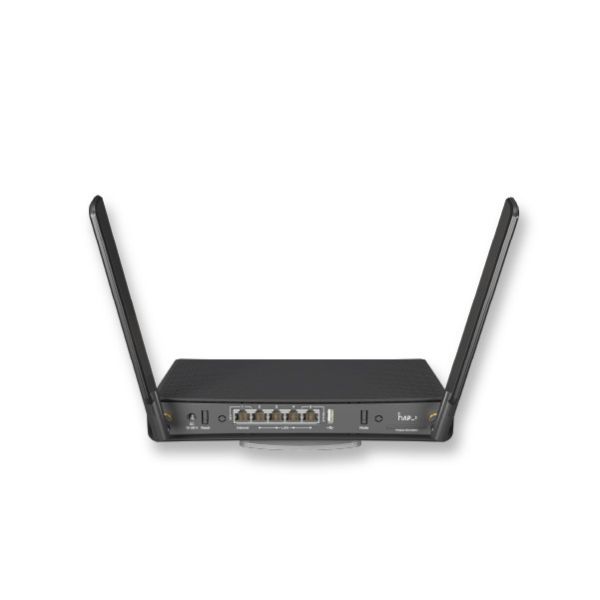

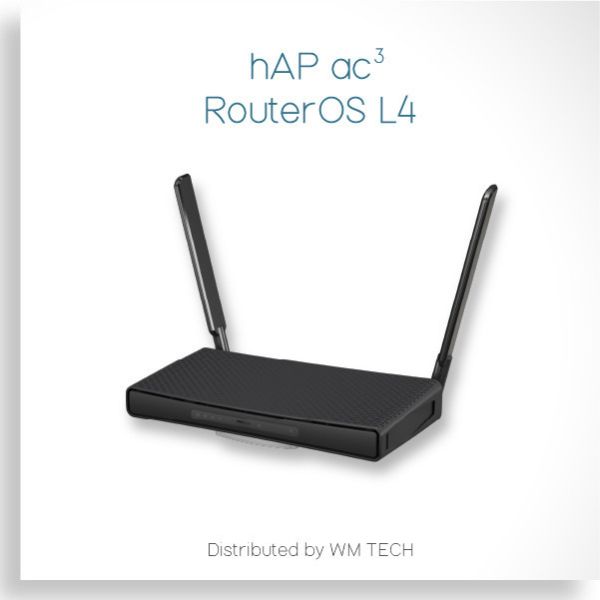

MikroTik hAP ac³ 是一款具備企業級功能的雙頻 Gigabit 無線路由器，專為中型空間的高效能網路環境所設計。

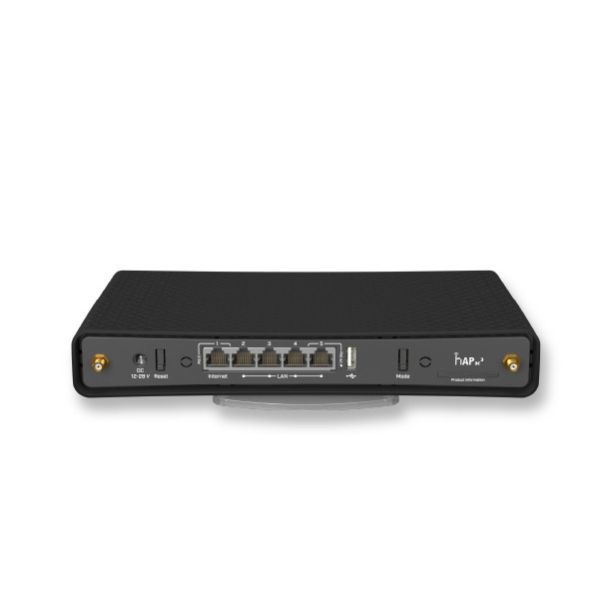

其搭載 5 組 Gigabit LAN 埠與雙頻無線模組（2.4GHz + 5GHz），可同時支援多台設備連線，並有效減少干擾、提升穩定性。加上 716MHz 四核心處理器與 256MB RAM，讓整體網路處理效能大幅升級，無論是串流影音、雲端辦公、VoIP 或 IoT 應用皆能順暢應對。
產品規格 (Specifications)
| Details | |
|---|---|
| Product code | RBD53iG-5HacD2HnD |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 448-896 (auto) MHz |
| Switch chip model | IPQ-4019 |
| Dimensions | 251 x 129 x 39 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
電源規格(Powering)
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 12 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
網路介面(Ethernet)
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
電源規格(Powering)
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 12 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
無線功能(Wireless capabilities)
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1200 |
無線規格(Wireless specifications)
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -96 |
| 54MBit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
周邊介面(Peripherals)
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
其他(Other)
| Mode button | Yes |
原廠測試報告 (Performance Test Report)
| RBD53iG-5HacD2HnD | IPQ-4019 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Bridging | 25 bridge filter rules | 162,5 | 1973.4 | 351,2 | 1438.5 | 352,1 | 180.3 |
| Routing | none (fast path) | 162,5 | 1973.4 | 469,9 | 1924.7 | 1488,4 | 762.1 |
| Routing | 25 simple queues | 162,5 | 1973.4 | 468,6 | 1919.4 | 493,4 | 252.6 |
| Routing | 25 ip filter rules | 162,5 | 1973.4 | 222,8 | 912.6 | 227,4 | 116.4 |
- 所有測試均使用Xena Networks專用測試設備（XenaBay）完成，並根據RFC2544（Xena2544）進行
- 最大吞吐量透過 30 秒以上的嘗試確定，封包大小為 64、512、1518 byte，封包遺失容限為 0.1%
- 測試結果顯示設備的最大性能，並使用上述硬體和軟體配置達到，不同的配置很可能會導致較低的結果
該設備已預先安裝並獲得許可的作業系統。無需單獨購買，產品即可使用。該設備在產品生命週期內或自購買之日起至少 5 年內提供免費軟體更新。
