商品詳情

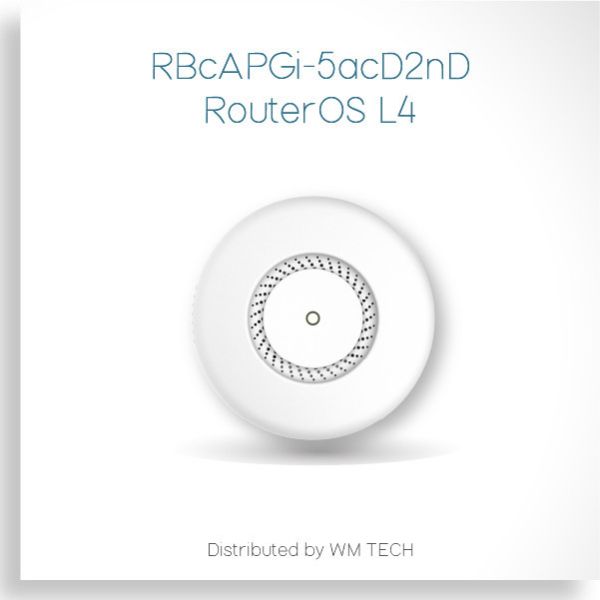

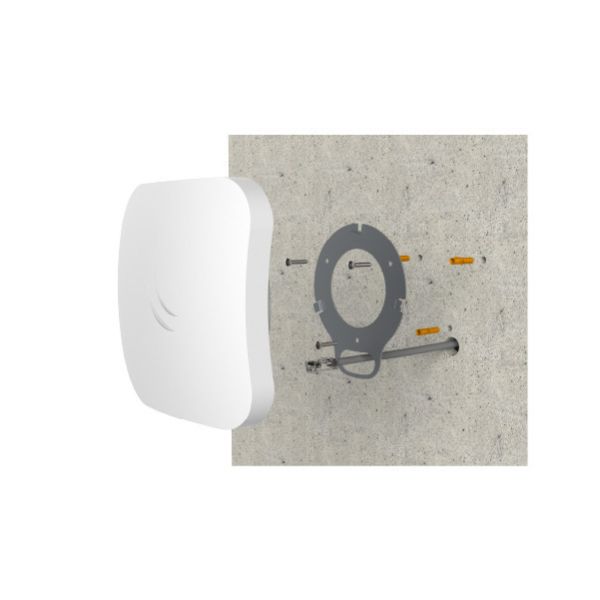

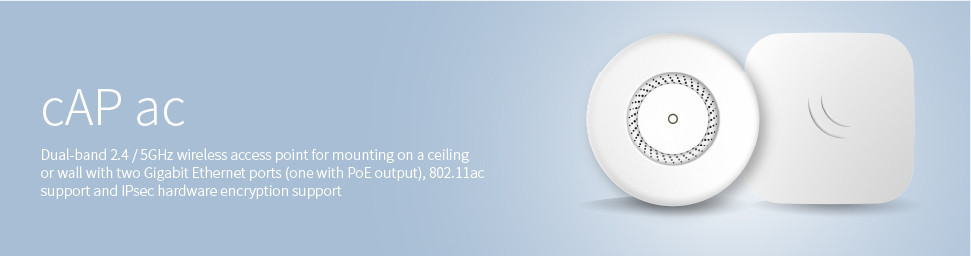

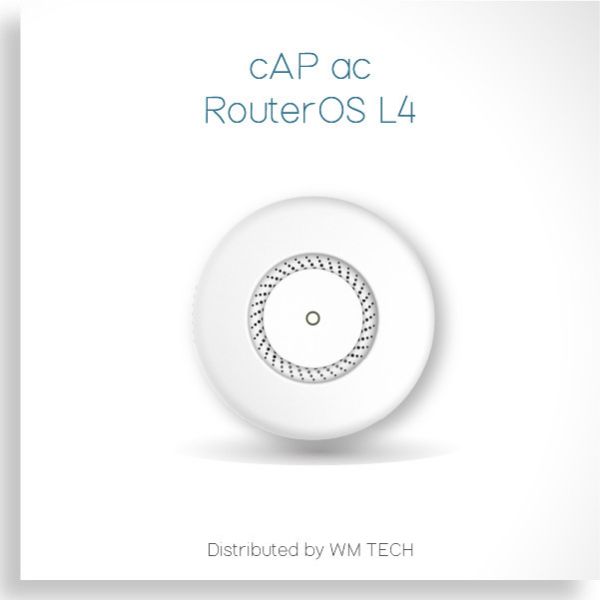

RBcAPGi-5acD2nD(cAP ac) 是一款功能強大的無線存取點，在牆壁和天花板上看起來都很漂亮。並發雙頻無線電支援 a/n/ас 標準中的雙鏈 2 GHz 802.11b/g/n 和 5 GHz，並將提供周圍 360 度的覆蓋範圍。
儘管無線電支援中繼器模式，但即使需要PoE 電源，兩個乙太網路連接埠也使您能夠透過電纜擴展網絡，因為RBcAPGi-5acD2nD(cAP ac)在第一個連接埠上支援802.3af/at PoE 輸入，並支援被動PoE輸出在第二個連接埠上。設備也支援 IPsec 硬體加速。
產品規格 (Specifications)
| Product code | RBcAPGi-5acD2nD |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Switch chip model | IPQ-4018 |

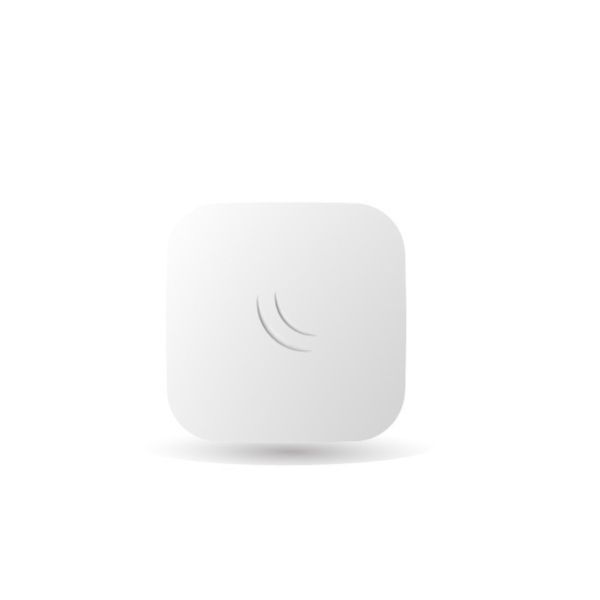

| Dimensions | Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 50°C |
| IPsec hardware acceleration | Yes |
電源規格(Powering)
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 24 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 17-57 V |
PoE供電(PoE-out)
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 500 mA |
| Max out per port output (input 30-57 V) | 400 mA |
| Max total out (A) | 500 mA |
網路介面(Ethernet)
| 10/100/1000 Ethernet ports | 2 |
無線功能(Wireless capabilities)
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1200 |
無線規格(Wireless specifications)
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
其他(Other)
| Mode button | Yes |
原廠測試報告 (Performance Test Report)
| RBcAPGi-5acD2nD | IPQ-4018 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1484.8 | 760.2 |
| Bridging | 25 bridge filter rules | 162.1 | 1968.5 | 352.9 | 1445.5 | 359.2 | 183.9 |
| Routing | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1488 | 761.9 |
| Routing | 25 simple queues | 162.5 | 1973.4 | 469.9 | 1924.7 | 506.3 | 259.2 |
| Routing | 25 ip filter rules | 162.2 | 1969.8 | 240.8 | 986.3 | 242.9 | 124.4 |
- 所有測試均使用Xena Networks專用測試設備（XenaBay）完成，並根據RFC2544（Xena2544）進行
- 最大吞吐量透過 30 秒以上的嘗試確定，封包大小為 64、512、1518 byte，封包遺失容限為 0.1%
- 測試結果顯示設備的最大性能，並使用上述硬體和軟體配置達到，不同的配置很可能會導致較低的結果
該設備已預先安裝並獲得許可的作業系統。無需單獨購買，產品即可使用。該設備在產品生命週期內或自購買之日起至少 5 年內提供免費軟體更新。
