商品詳情

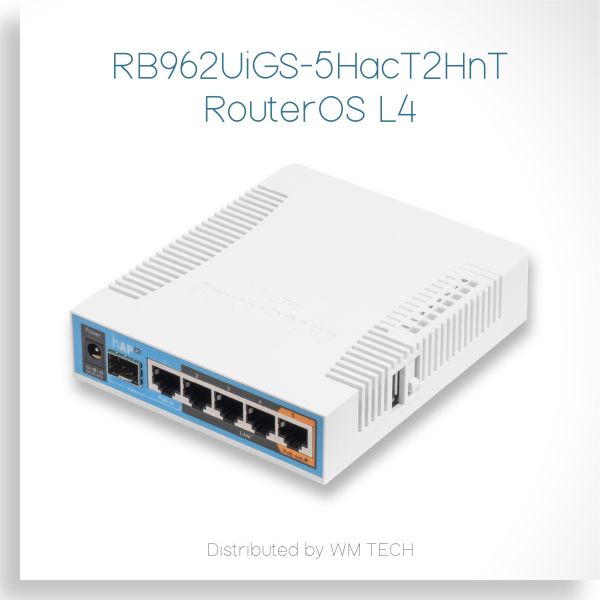

RB962UiGS-5HacT2HnT(hAP ac) 是我們最通用的家庭或辦公室無線設備。它是一款具有千兆埠的雙頻設備，可充分發揮 802.11ac 技術速度的優勢，同時保持與 2GHz 802.11 b/g/n 和 5GHz a/n 模式下的傳統設備的兼容性。
全向天線允許將 RB962UiGS-5HacT2HnT(hAP ac) 安裝在任何位置，高功率發射器將確保家庭、辦公室或公共場所的行動裝置獲得良好的覆蓋範圍。
其他有用的功能包括用於連接額外儲存或3G/4G 數據機的USB 連接埠、最後一個乙太網路連接埠上的PoE 輸出，無需額外的電源轉接器即可為其他RouterBOARD 設備供電，以及用於連接主動或無源光纖網路模組的SFP 籠。
產品規格 (Specifications)
| Product code | RB962UiGS-5HacT2HnT |
| Architecture | MIPSBE |
| CPU | QCA9558 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Switch chip model | QCA8337 |
| Dimensions | 114 x 137 x 29mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
電源規格(Powering)
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-57 V |
| Max power consumption | 17 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-57 V |
網路介面(Ethernet)
| 10/100/1000 Ethernet ports | 5 |
光纖介面(Fiber)
| SFP ports | 1 |
PoE供電(PoE-out)
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 700 mA |
| Max out per port output (input 30-57 V) | 350 mA |
| Max total out (A) | 700 mA |
無線功能(Wireless capabilities)
| Wireless 2.4 GHz Max data rate | 450 Mbit/s |
| Wireless 2.4 GHz number of chains | 3 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | QCA9558 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 1300 Mbit/s |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1750 |
無線規格(Wireless specifications)
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 29 | -100 |
| 11MBit/s | 29 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 26 | -81 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -77 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54MBit/s | 25 | -81 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -77 |
| MCS9 | 21 | -72 |
周邊介面(Peripherals)
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
其他(Other)
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
原廠測試報告 (Performance Test Report)
| RB962UiGS-5HacT2HnT | QCA9558 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 161.9 | 1,966.1 | 345.5 | 1,415.2 | 435.6 | 223.0 |
| Bridging | 25 bridge filter rules | 125.5 | 1,524.1 | 126.5 | 518.1 | 128.8 | 65.9 |
| Routing | none (fast path) | 161.9 | 1,966.1 | 334.2 | 1,368.9 | 397.9 | 203.7 |
| Routing | 25 simple queues | 161.9 | 1,966.1 | 183.9 | 753.3 | 203.3 | 104.1 |
| Routing | 25 ip filter rules | 78.1 | 948.4 | 77.8 | 318.7 | 77.5 | 39.7 |
- 所有測試均使用Xena Networks專用測試設備（XenaBay）完成，並根據RFC2544（Xena2544）進行
- 最大吞吐量透過 30 秒以上的嘗試確定，封包大小為 64、512、1518 byte，封包遺失容限為 0.1%
- 測試結果顯示設備的最大性能，並使用上述硬體和軟體配置達到，不同的配置很可能會導致較低的結果
該設備已預先安裝並獲得許可的作業系統。無需單獨購買，產品即可使用。該設備在產品生命週期內或自購買之日起至少 5 年內提供免費軟體更新。
