商品詳情

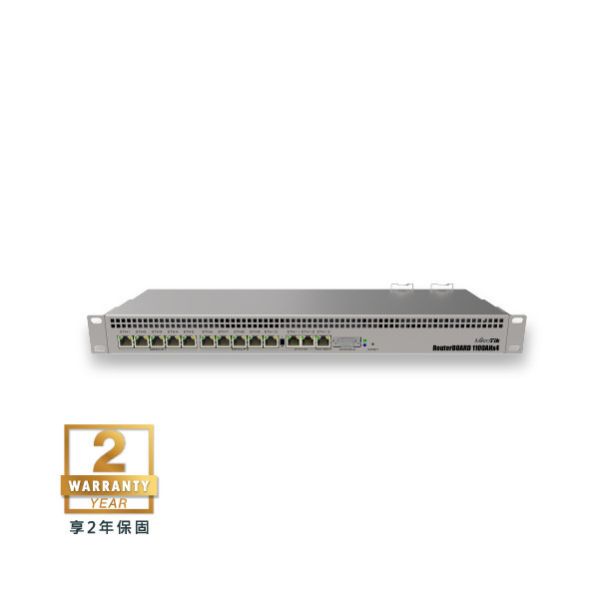

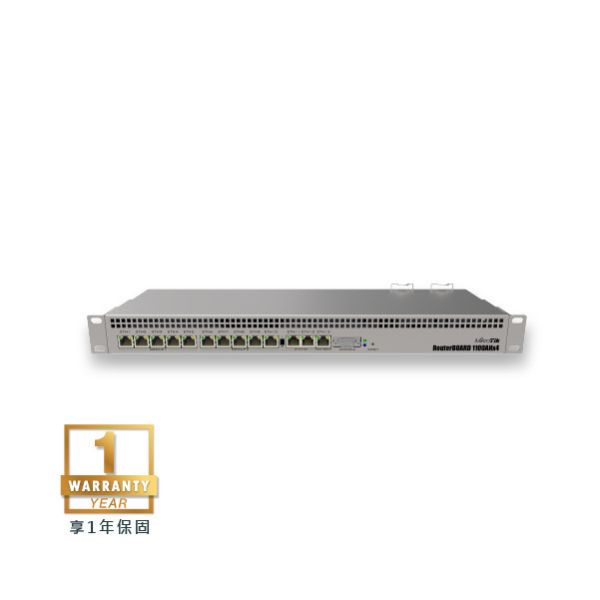

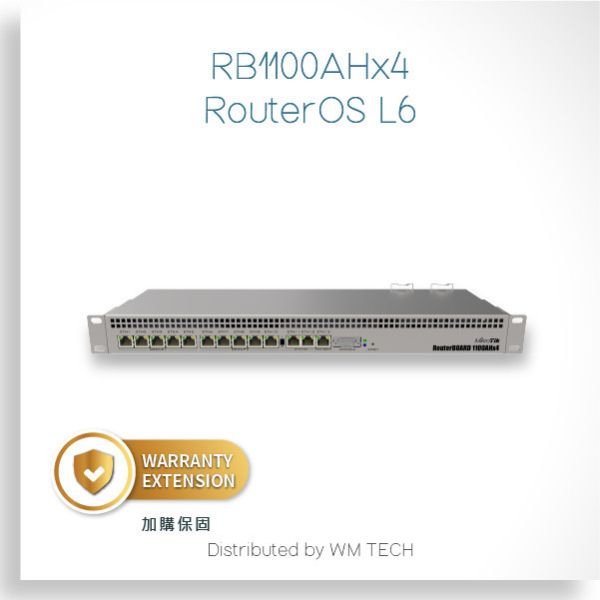

RB1100x4(RB1100AHx4) 是MikroTik 1U機架式高規格的Gigabit Ethernet Router產品 RB1100AH 為1U鋁製機殼，其內含4核心 CPU、1GB RAM，13個 Gigabit 網路連接埠，一個microSD卡插槽(MicroSD)；此外其擁有電壓監控、CPU溫度監控、PCB溫度監控。
RouterOS操作系統功能包含設定防火牆(firewall)，熱點(hotspot)，動態路由(Dynamic routing)，MPLS，VPN、advanced quality of service(QoS)，網路負載平衡設置(load balancing and bonding)、real-time configuration，監控(Monitoring) 等功能，通過RouterOS的功能您可以做到更多高階設定功能。
產品規格 (Specifications)
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Switch chip model | RTL8367 |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
電源規格(Powering)
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
網路介面(Ethernet)
| 10/100/1000 Ethernet ports | 13 |
周邊介面(Peripherals)
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
其他(Other)
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Beeper | Yes |
原廠測試報告 (Performance Test Report)
| RB1100x4 | AL21400 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5,509.7 | 2,821.0 |
| Bridging | 25 bridge filter rules | 606.5 | 7,365.3 | 1,107.8 | 4,537.5 | 1,153.2 | 590.4 |
| Routing | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5092.3 | 2,607.3 |
| Routing | 25 simple queues | 606.5 | 7,365.3 | 933.6 | 3,824.0 | 960.3 | 491.7 |
| Routing | 25 ip filter rules | 543.7 | 6,602.7 | 561.8 | 2,301.1 | 564.6 | 289.1 |
- 所有測試均使用Xena Networks專用測試設備（XenaBay）完成，並根據RFC2544（Xena2544）進行
- 最大吞吐量透過 30 秒以上的嘗試確定，封包大小為 64、512、1518 byte，封包遺失容限為 0.1%
- 測試結果顯示設備的最大性能，並使用上述硬體和軟體配置達到，不同的配置很可能會導致較低的結果
該設備已預先安裝並獲得許可的作業系統。無需單獨購買，產品即可使用。該設備在產品生命週期內或自購買之日起至少 5 年內提供免費軟體更新。
